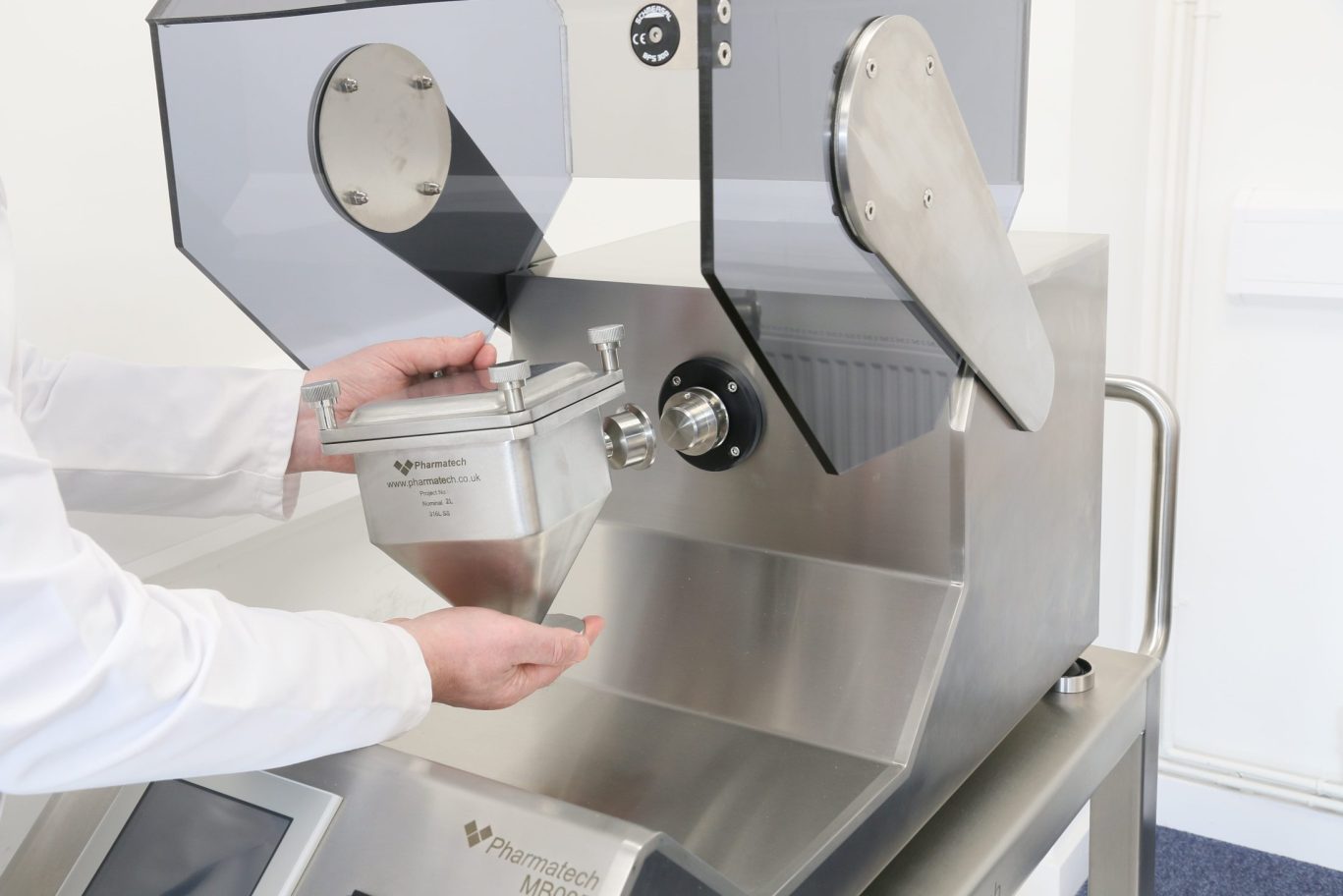

One drive unit. Many vessels. A faster, cleaner way to blend.
A detachable vessel system that cuts batch times from hours to minutes — and changes the economics of powder blending.

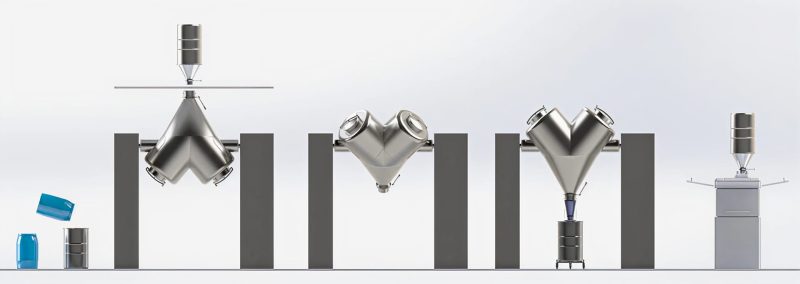

Fixed shell process
2-3 hrs
Average time per batch
VS
MultiBlend process
30 min
Average time per batch
Up to 80% faster
While one vessel blends, others are prepared, cleaned or unloaded — dramatically reducing cycle times between batches.

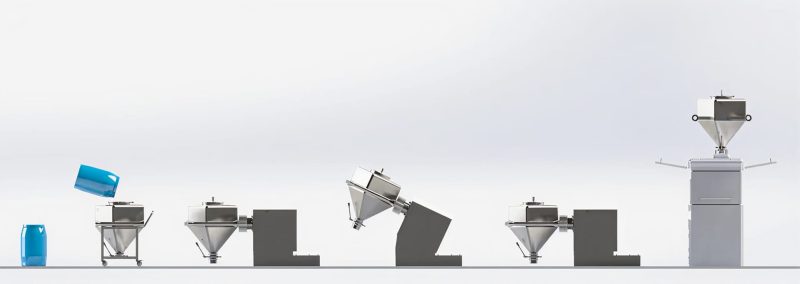

How the MultiBlend Principle works
01. Load in dispensing area
Product loaded into the vessel inside a dedicated dispensing area — minimising airborne contamination and operator exposure.
02. Blend on the drive unit
Vessel clamps onto a single drive unit that supports multiple sizes and geometries — no in-situ product transfers.
03. Unload & clean off-line
Vessel detaches for unloading and cleaning in dedicated areas — keeping the blender free for the next batch.
Four ways to connect a vessel
Multiple connection methods let manufacturers choose the configuration that best suits their process, product type and batch size.

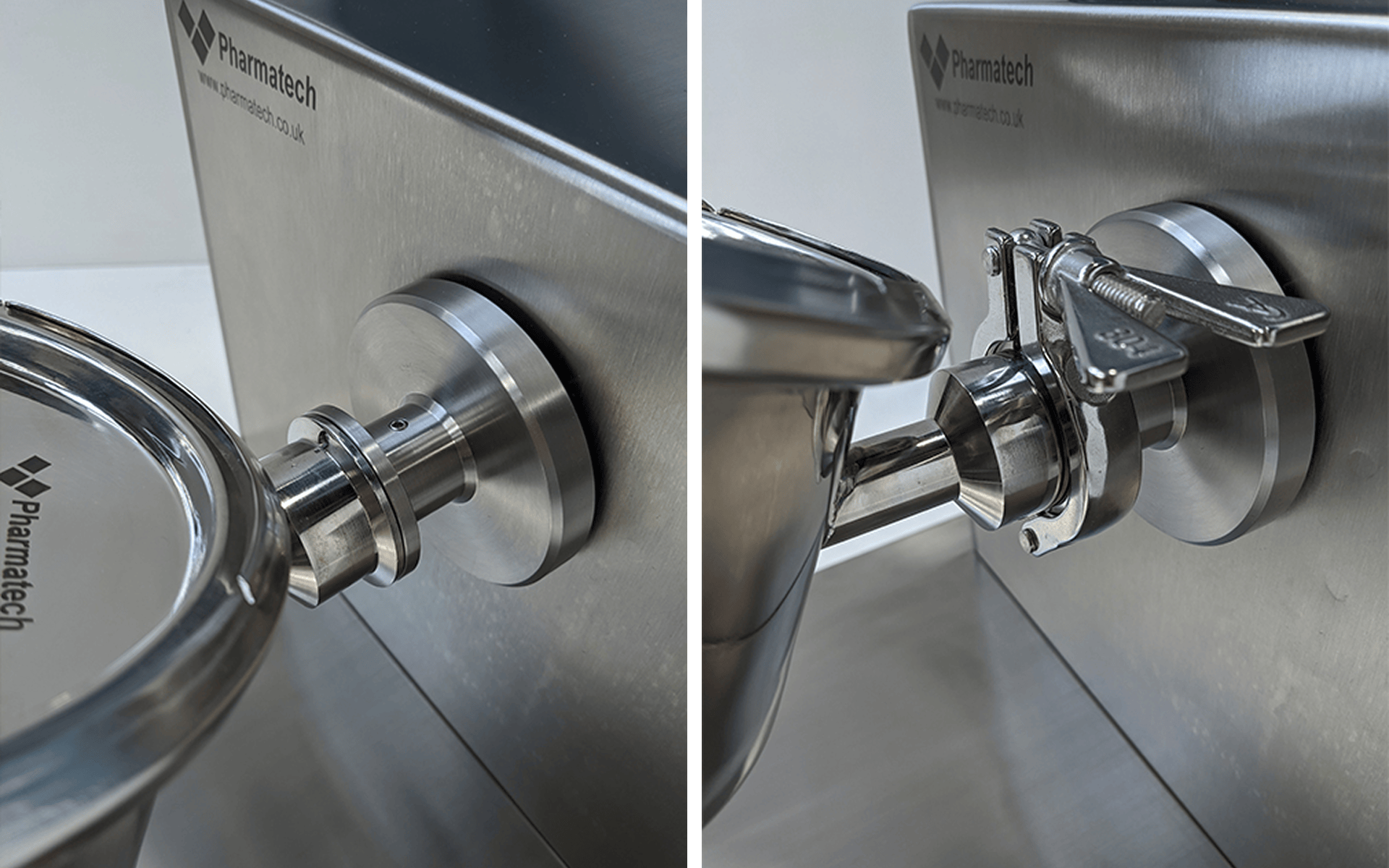

Direct attachment
A single clamp secures the vessel. Quick changeovers, minimal setup, ideal for smaller manually-handled vessels.
BEST FOR: Small repeatable batches

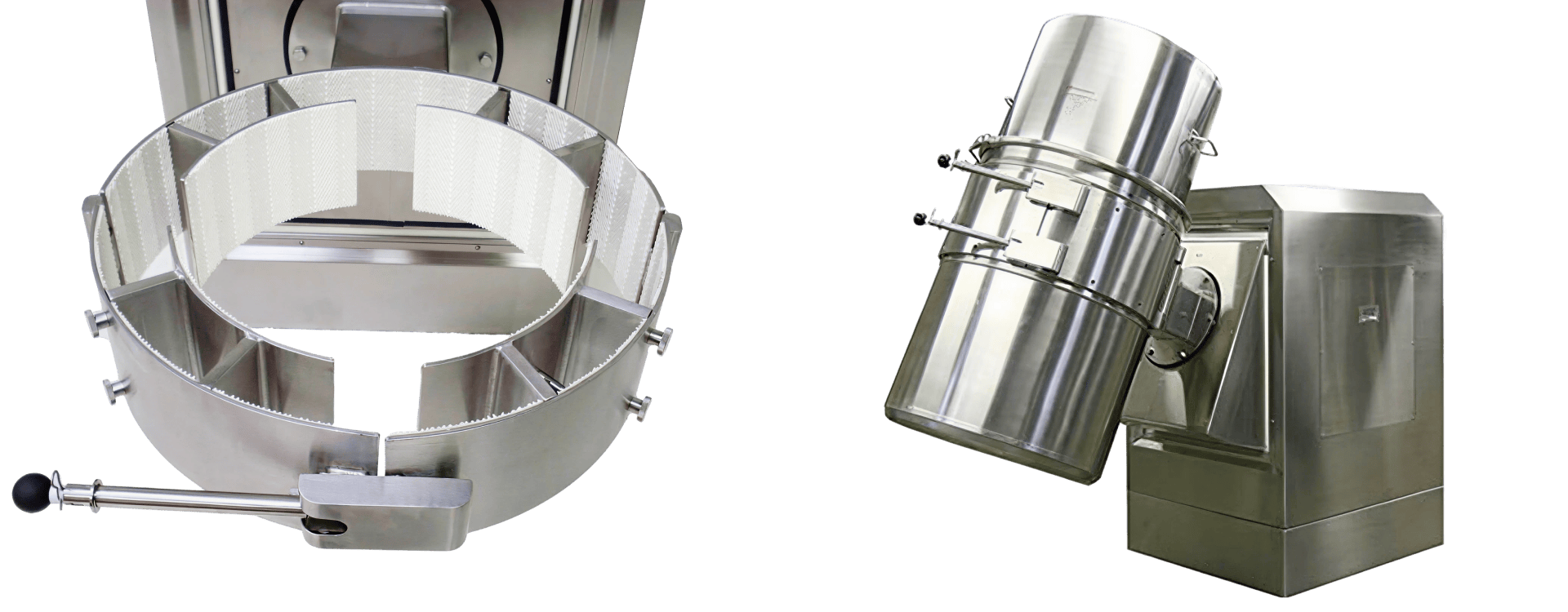

Clamp bands
Designed for circular vessels. Fast, secure loading and unloading — reduces setup time and keeps production moving.
BEST FOR: Circular vessels, repeat runs

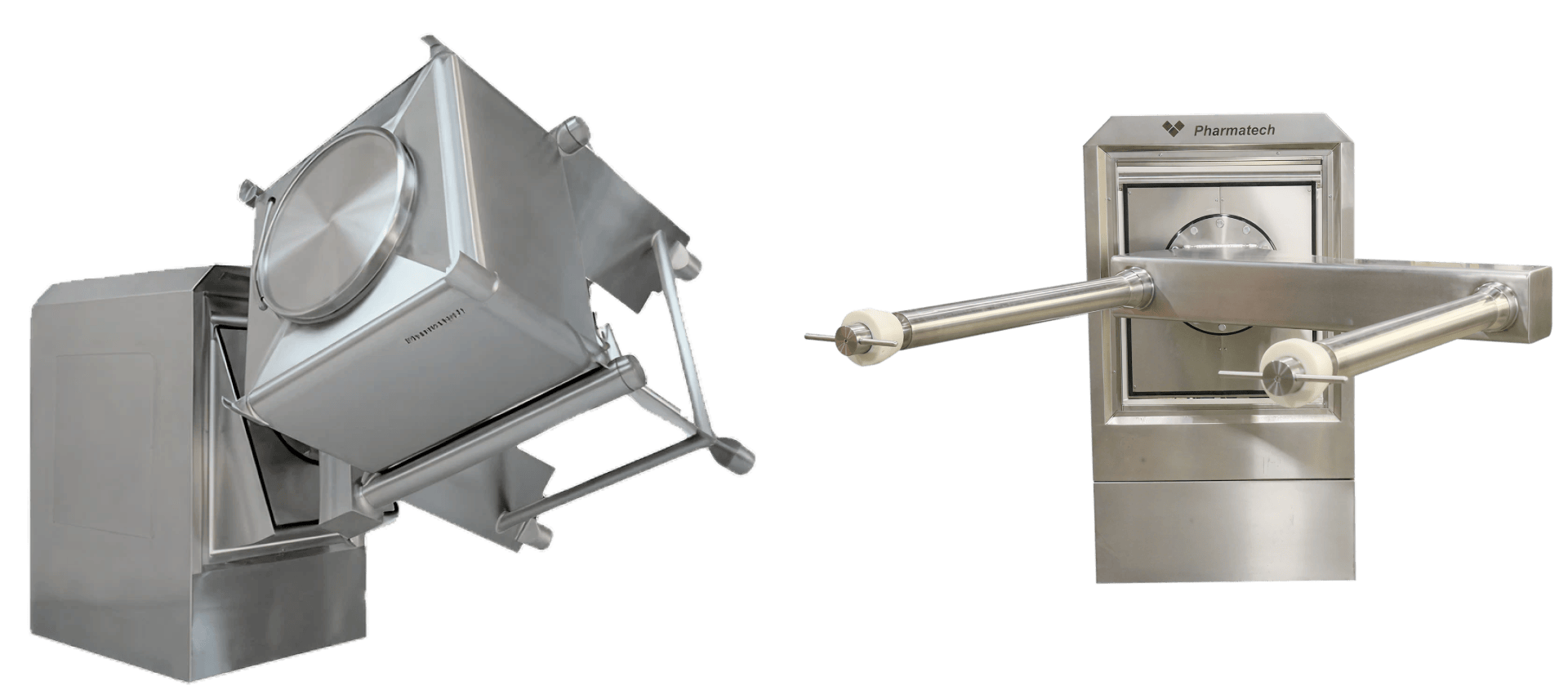

Universal arms
Manual or powered clamping for IBCs, V-shells and double cones. Safe handling and consistent alignment for larger loads.
BEST FOR: IBCs, V-shells, double cones
Fixed-shell option
Permanent mounting for larger-scale production. Stable, high-capacity reliability for repeat operations.
BEST FOR: High-volume production runs
Why it matters
Lower capital investment
One drive unit operates a range of vessel sizes — fewer machines, less maintenance.
Parallel processing
Prepare, blend, clean and unload simultaneously across multiple vessels.
Improved containment
No in-situ product transfers — no product release during charging or discharging.
Seamless scale-up
One drive unit supports development through full production — same principle, every scale.
Simplified cleaning
Vessels wash off-line in dedicated facilities — blending area stays free for production.
End-to-end transfer
Same vessel moves material between process stages — fewer containers, less handling.
Available across the MultiBlend range
MultiBlend MB1200A Powder Blender
MultiBlend MB400 Powder Blender
MultiBlend MB100 Powder Blender
MultiBlend MB015 Powder Blender
MultiBlend MB005 Powder Blender
Terriva Bespoke Blending Systems
Engineering insight
Smaller vessels (up to ~20L) handle manually. Larger vessels use integrated wheels or mobile trolleys.
Next steps
Could MultiBlend transform your batch process?
Our application engineers will model your existing cycle and show what MultiBlend changes — in batches per day, capital footprint and labour hours.
